Electromechanical Single Face Brake

Electromechanical Single Face Brake
Electromechanical Single Face Brake
Product Code : 07
Brand Name : MAGPOWER LINKSYS
Price And Quantity
  • Minimum Order Quantity
  • AS PER REQUIREMENTS
  • Unit of Measure
  • Piece/Pieces
Product Description

With innovative technology and skilled professional we offer Electromechanical Single Face Brake Type EB. Offered product is manufactured using best quality stainless-steel material of 304. Electromechanical Single Face Brake Type EB drum sizes vary from 10mm to 380 mm diameter. Our product is provided with various features such as dry design means instant reaction to commands, torque levels can be increased or decreased by making it suitable for a variety of applications, fast response etc. Provided product is widely used in hard machine engineering, electronic devices manufacturers, automobile industry etc.

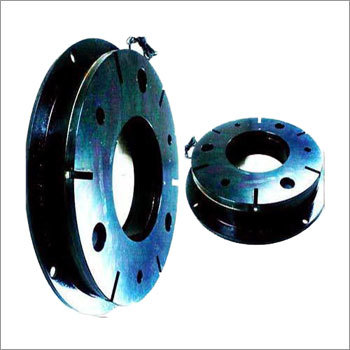

Electromagnetic Single Face Brake Type EB

Magpower system are manufacturers of Clutches and Brakes which are intended for Start-Stop applications. They come in various types to meet different requirements.

Type EB
Magpower Electromagnetic Single Face Brake Type EB is a “Normally Off” Type Brake. It has 2 basic parts. The stator which consists of a coil and friction material, and the Armature plate. The braking torque is produced by means of the electromagnetic force which is developed when the current flows through the brake coil, thus attracting the Armature plate to the stator with friction material, thereby arresting the motion and is released immediately due to a sinusoidal wave spring, when no current is passing through the coil.

These brakes are used for Dry Applications only.

Features

  • These brakes are designed for simple mounting and easily adaptable to any mounting requirement as it is manufactured in varied designs.
  • The sinusoidal wave spring enables a backlash free transmission, enabling very short response time on disengagement.
  • The friction faces are completely separated by the Spring eliminating any drag and permitting use at very high idling speeds.
  • These units are practically maintenance free due to the Stationary Coil and Highly Wear Resistant friction surfaces.



Technical Specifications:

Size

08

10

12

15

19

23

29

Torque (Nm)

7.5

15

30

60

120

240

480

Max.Speed (min-1)

8000

6000

5000

4000

3000

3000

2000

Input power at 20°C (W)

11.5

16

21

28

38

45

70

Ø A

80

100

125

150

190

230

290

Ø B

72

90

112

137

175

215

270

Ø D

63

80

100

125

160

200

250

Ø E

46

60

76

95

120

158

210

Ø F

35

42

52

62

80

100

125

Ø H

6.3

8

10.5

12

15

18

22

Ø J

3x 3.1

3x 4.1

3x 5.1

3x 6.1

3x 8.2

3x 10.2

4x 12.2

Ø K

4x 4.5

4x 5.5

4x 6.6

4x 6.6

4x 9

4x 9

4x 11

Ø L

3x 5.5

3x 7

3x 9

3x 10

3x 13

3x 16

4x 20

Ø M0

22

24.5

27.9

31

35

41.4

47.9

Ø M1

37

44.5

52.9

61

73

89.4

102.9

Ø M2

25.5

28.5

32.9

37

42

50.4

58.9

Ø N

18

20

22

24

26

30

35

Ø P

2

2.5

3

3.5

4

5

6

Ø P1

3.5

4.3

5

5.5

6

7

8

T

15

20

25

30

38

48

55

U

1.6

1.8

2.4

2.8

3.2

4

4.3

Ø V

28

33

43

50

66

84

106

a

0.2

0.2

0.2

0.3

0.3

0.5

0.5

b*

5

6

6

10

10

15

20

Max bore Ø G 1 H2

17

20

30

35

45

60

80

Ordering Information
  • Type, Size, D.C. Voltage, Design.
  • Armature Bore Diameter
  • Armature Bore Diameter is not applicable for Design 100.

Example of Order

  • Type : EB, Size : 08, 24 VDC, Design: 101, Armature Bore Diameter – 14 mm.
  • For selecting the correct size of the brake, the factors to be considered are
  • Max. reqd. braking torque.
  • Freq. Of operations.
  • Max. thermal load.

The reqd. braking torque can be calculated using the formula

  • M = (9550 pn). s (Nm)
  • M = Reqd. Static torque (Nm)
  • p = Power rating of prime mover in KW
  • n = Rev Min
  • s = Service factor depending on application (1.5 to 4.0)

For switching details and complicated calculations, please get in touch with us.

Magpower Electromagnetic Single face Brake Type EB require D.C. Supply

Product Line

  • Spring Applied Fail Safe Brake – Type FSB
  • Electromagnetic Single Face Brakes (Normally Off) – Type EC
  • Electromagnetic Single Face Bearing Mounted Clutch – Type BMC
  • Clutch – Brake Combination Open – Type CBO
  • Clutch – Brake Combination Encased – Type CBE
  • Single Shaft Double Clutch Unit – Type SSDC
  • Single Shaft Clutch Brake Unit – Type SSCB
  • Hollow Shaft Clutch Brake Unit – Type HSCBE
  • A.C. Fail Safe Brake – Type AFS
Trade Information
  • Payment Terms
  • Others, Cheque
  • Supply Ability
  • as per order Per Month
  • Delivery Time
  • as per order Months
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • corrugated boxes
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
